pQE32载体基本信息
出品公司:别名:质粒类型:表达水平:启动子:克隆方法:载体大小:5' 测序引物及序列:3' 测序引物及序列:载体标签:载体抗性:备注:产品目录号:稳定性:组成型:病毒/非病毒:
Qiagen
pQE32, pQE 32
大肠杆菌蛋白表达载体
低拷贝
T5
多克隆位点，限制性内切酶
3462 bp
pQE30-F: AGCGGATAACAATTTCACACAG
pQE30-R: TTCTGAGGTCATTACTGGATC
N-His
Ampicillin
pQE vectors and constructs can be maintained in any E. coli strain that is ampicillin-sensitive and carries the pREP4 repressor plasmid, or harbors the lacIq gene on the F-factor episome. 配套表达菌株为M15[pREP4].
32915
瞬时表达 Transient
组成型 Constitutive
非病毒

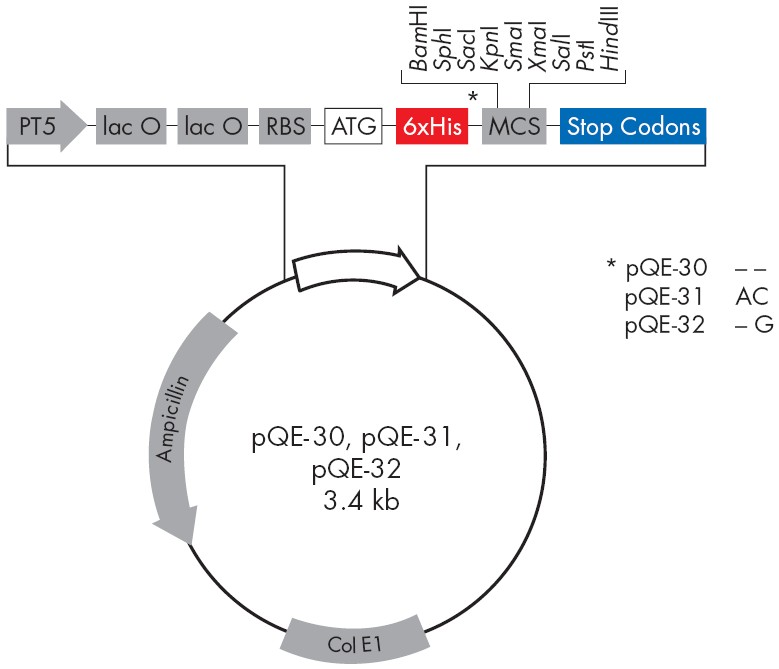

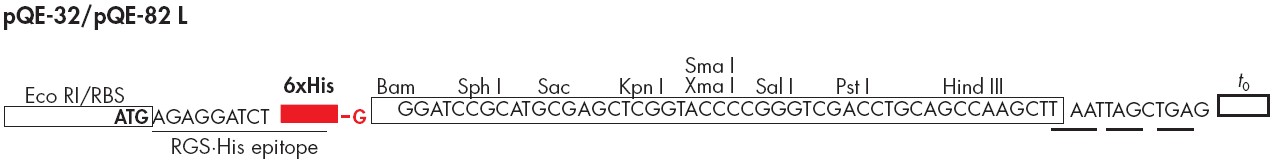

pQE32载体质粒图谱和多克隆位点信息



pQE32载体简介
pQE32载体序列
LOCUS       pQE-32    3462 bp     DNA  Circular    SYN
DEFINITION  pQE-32
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..3462
                     /organism="pQE-32"
                     /mol_type="other DNA"
     gene            347..1006
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             347..1006
                     /label="ORF frame 2"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      1074..1117
                     /label="rrnB_T1_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(1204..1226)
                     /label="pGEX_3_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            complement(2397..3257)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     CDS             complement(2397..3257)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(3299..3327)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CTCGAGAAAT CATAAAAAAT TTATTTGCTT TGTGAGCGGA TAACAATTAT AATAGATTCA
   61 ATTGTGAGCG GATAACAATT TCACACAGAA TTCATTAAAG AGGAGAAATT AACTATGAGA
  121 GGATCTCACC ATCACCATCA CCATGGGATC CGCATGCGAG CTCGGTACCC CGGGTCGACC
  181 TGCAGCCAAG CTTAATTAGC TGAGCTTGGA CTCCTGTTGA TAGATCCAGT AATGACCTCA
  241 GAACTCCATC TGGATTTGTT CAGAACGCTC GGTTGCCGCC GGGCGTTTTT TATTGGTGAG
  301 AATCCAAGCT AGCTTGGCGA GATTTTCAGG AGCTAAGGAA GCTAAAATGG AGAAAAAAAT
  361 CACTGGATAT ACCACCGTTG ATATATCCCA ATGGCATCGT AAAGAACATT TTGAGGCATT
  421 TCAGTCAGTT GCTCAATGTA CCTATAACCA GACCGTTCAG CTGGATATTA CGGCCTTTTT
  481 AAAGACCGTA AAGAAAAATA AGCACAAGTT TTATCCGGCC TTTATTCACA TTCTTGCCCG
  541 CCTGATGAAT GCTCATCCGG AATTTCGTAT GGCAATGAAA GACGGTGAGC TGGTGATATG
  601 GGATAGTGTT CACCCTTGTT ACACCGTTTT CCATGAGCAA ACTGAAACGT TTTCATCGCT
  661 CTGGAGTGAA TACCACGACG ATTTCCGGCA GTTTCTACAC ATATATTCGC AAGATGTGGC
  721 GTGTTACGGT GAAAACCTGG CCTATTTCCC TAAAGGGTTT ATTGAGAATA TGTTTTTCGT
  781 CTCAGCCAAT CCCTGGGTGA GTTTCACCAG TTTTGATTTA AACGTGGCCA ATATGGACAA
  841 CTTCTTCGCC CCCGTTTTCA CCATGGGCAA ATATTATACG CAAGG
