MONO S 5/50 GL
产品名称： MONO S 5/50 GL
英文名称： MONO S 5/50 GL
产品编号： 17-5168-01
产品价格： 0
产品产地： 美国
品牌商标： GE
更新时间： null
使用范围： null
- 联系人 :
- 地址 : 上海市宝山区友谊路1506号东智广场1109室
- 邮编 : 201900
- 所在区域 : 上海
- 电话 : 138****5983 点击查看
- 传真 : 点击查看
- 邮箱 : 342786402@qq.com
| 17-5168-01 | MONO S 5/50 GL |
| 17-5169-01 | MONO S 10/100 GL |
| 17-5179-01 | MONO Q 4.6/100 PE |
| 17-5180-01 | MONO S 4.6/100 PE |
Technical Information
MonoBeads™ are prepacked in Tricorn™, HR, and PC column formats. The three Tricorn™ (5/50 GL, 10/100 GL, and 4.6/100 PE) columns offer high-resolution separations with greater loading capacity but slightly lower resolution than MiniBeads™ columns (see page 511).
Tricorn™ columns are ideal for the polishing step when high purity is required. HR 16/10 columns, on the other hand, have higher loading capacity than Tricorn™ columns. PC 1.6/5 columns are ideal for micropurification of subnanogram to microgram amounts of sample on ÄKTA Systems or other high-performance LC systems.
Customer feedback on Mono Q HR 5/5.
| TECHNICAL SPECIFICATIONS | ||
| MonoBeads™ | ||
| Ion exchanger type | Mono Q™ | Strong anion |
| Mono S™ | Strong cation | |
| Ionic capacity | Mono Q™ | 0.27-0.37 mmol Cl-/ml |
| Mono S™ | 0.12-0.15 mmol H+/ml | |
| pH stability | 2-12 (working), 1-14 (short term) | |
| Chemical stability | Stable in all common buffers except high concentration oxidizing and reactive agents, DMSO, DMF, and formic acid. | |
| Medium | Monodisperse polystyrene/divinyl benzene particles | |
| Particle size | 10 μm | |
| Storage | 20% ethanol (Q), 0.2 M sodium acetate in 20% ethanol (S) | |
| Storage temperature | 4°C to 30°C | |
| MonoBeads Columns* | ||
| Bed volume | PC 1.6/5 | 0.1 ml |
| 5/50 GL | 1 ml | |
| 4.6/100 PE | 1.7 ml | |
| 10/100 GL | 8 ml | |
| HR 16/10 | 20 ml | |
| Max. pressure | PC 1.6/5 | 50 bar (725 psi, 5 MPa) |
| 5/50 GL, 10/100 GL, 4.6/100 PE |
40 bar (580 psi, 4 MPa) | |
| HR 16/10 | 30 bar (435 psi, 3 MPa) | |
| Recommended flow rate | PC 1.6/5 | 0.01-0.4 ml/min |
| 5/50 GL, 4.6/100 PE | 0.5-3.0 ml/min | |
| 10/100 GL | 2.0-6.0 ml/min | |
| HR 16/10 | < 10 ml/min | |
| * Columns are not suitable for use with ÄKTAprime™ plus system.
|
||
)

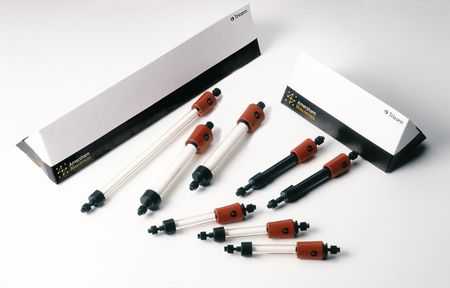

Tricorn high-performance columns are prepacked with MonoBeads ion exchange media for high-resolution purification and high capacity.
)
The polishing step on Mono Q 5/50 GL shows different phosphoforms of the purified kinase and very high purity
